Pumps are standard-priming sanitary_ CL series

Hãng sản xuất: CSF Pumps Inox VietNam

Liên hệ tư vấn

Ms. Trinh

trinh@pitesco.com

0914.738.179

trinh trinh

CSF Inox produces sanitary centrifugal pumps, sanitary screw pumps and sanitary piston pumps. The Omac lobe pumps are also part of the CSF group.
CSF pumps are used predominantly in the food, pharmaceutical and chemical industries.


Characteristics

Stainless steel AISI 316 sanitary centrifugal pumps with open impellers.

  • Max. power: 15 kW
  • Max. capacity: 140 m3/hr
  • Max. capacity: 2333 l/min
  • Max. capacity: 140000 l/hr
  • Max. discharge head: 46 m
  • Max. pressure: 5 bar

Downloads CATALOGUE

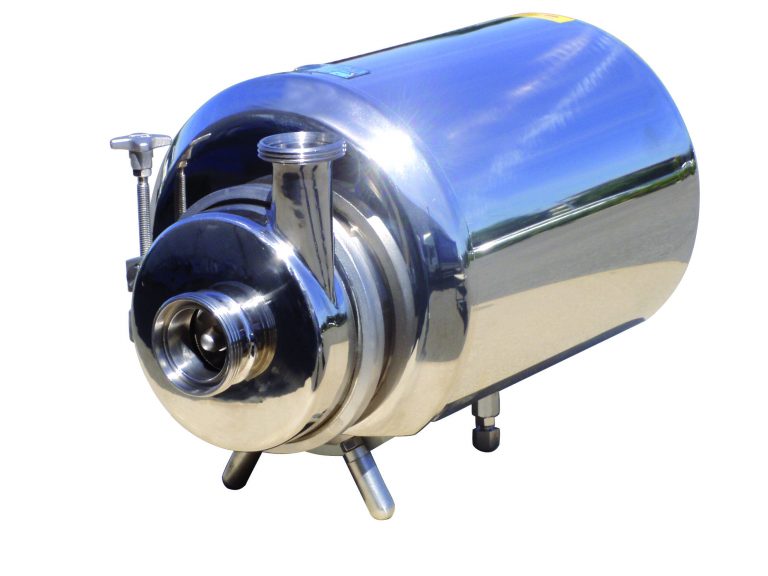

The CL pumps are standard-priming sanitary, centrifugal pumps with open impellers.

The pumps are supplied with a clamp around the pump housing so the inside of the pump can be quickly and easily cleaned. The pump housing can also be rotated, so that the press connection can be rotated into more positions. The connections are made compliant with DIN 11851.

The pump housing and the impeller are made of polished stainless steel AISI 316.

The pumps are all equipped with standard IEC electric motors with a speed of 1450 or 2900 rpm that can optionally be supplied with a stainless steel motor casing.

The pumps are ideal for pumping liquids as thin as water with small soft solids when the chemical resistance of the materials coming into contact with the liquid must be considered.

The max. temperature of the liquid that can be pumped is 90 deg C (depending on the suction head).

The seal can be completely matched to the specific properties of the liquid to be pumped. This can range from a single mechanical seal to a double mechanical seal with a flush seal which is available in many material combinations.



Material

  • Stainless steel 316
