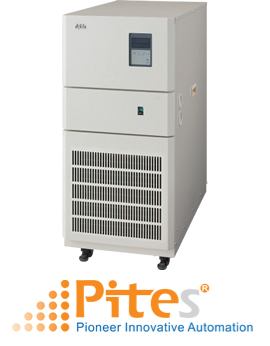

Apiste Air Cooled Chillers PCU-6330R
Xuất sứ: Apiste
Nhà cung cấp: PITESCO Viet Nam
Hãng sản xuất: Apiste
Mr. Hà
live:ha_1652Specifications
| Cooling Method | Air-cooling type |
|---|---|
| Cooling Capacity（W） | 5700/6100 |
| Heating Capacity/Quick Heating (W) | 0.0 |
| Heating Capacity/Control Heating (W) | 6000 |
| Temperature Control Precision (°C) | +-(high-precision mode) 0.10 |
| Water Setting Temperature Range (°C) | -10～80 |
| Circulated Water | Pure or distilled water (electric conductivity of 1~10µS/cm), ethylene glycol solution (strength of 30% or less) |
| Use Area Temperature (°C) | 5～40 |
| External Dimensions（mm） | H1250×W440×D800 |
| Volume (kg) | 137 |
| Rated Voltage (V) | Three-phase AC200 |
| Consumption Current/MIN (A) | 11.5/12.2 |
| Consumption Current/MAX (A) | 31.5/32.2 |
| Wattage/MIN (W) | 3150/3700 |
| Wattage/MAX (W) | 9150/9650 |
| Power Supply Capacity (kVA) | 15 |
| Ciculation Pump/Rated Output (W) | 750 |
| Ciculation Pump/Rated Flow Volume (ℓ/min) | 35/40 |
| Ciculation Pump/Pump Lift (m) | 35/50 |
| Maximum Tank Volume (ℓ) | 38 |
| Coolant | R-407C 1200g |
| Noise (dB) | 65/68 |
| Safety Circuit/Compressor | Protector temperature (135°C OFF), overcurrent relay |
| Safety Circuit/Refrigeration Cycle | Pressure switch |
| Safety Circuit/Circulated Water Circuit | Water pressure sensor, Wed deletion / Irrigation / SW float filled with water detected |
| Safety Circuit/Pump | Overcurrent relay |
| Safety Circuit/Fan Motor | Overcurrent relay |
| Safety Circuit/Heater | Thermo-Over-Temperature (90°C OFF), current fuse |
| Input-Output/Alarm Output | No-voltage contact a ( AC250V / 2A / Resistive load) |
| Input-Output/Water Temperature Top-Bottom Limit Alarm | No-voltage contact a ( AC250V / 2A / Resistive load) |
| Input-Output/Water Supply Valve/Operation Output | No-voltage contact a ( AC250V / 2A / Resistive load) |
| Input-Output/External Temperature Sensor Input | Pt100 |
| Input-Output/External Control Input | Non-voltage input |
| Input-Output/Emergency Shutdown Input | Non-voltage input |
| Input-Output/RS-232C | Half-duplex, three-wire, one-on-one |
| Functions | Circulating water pressure alarm function, Circulating water pressure display function, Circulating water temperature alarm function, Heater power display function, Pump running time display function, Anti-freezing operation function, Digital filter function, Password setting function, Auto-tuning function, Function ON / OFF timer, Key lock function, Error history memory function, Cascade control function, External temperature input function |
| Safe Performance | Timer condition compressor, close assist pump, adjuster for fixing, double safety pan |
Dimensions

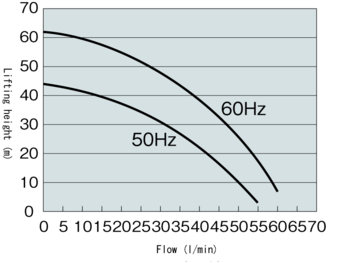

Pump capacity
