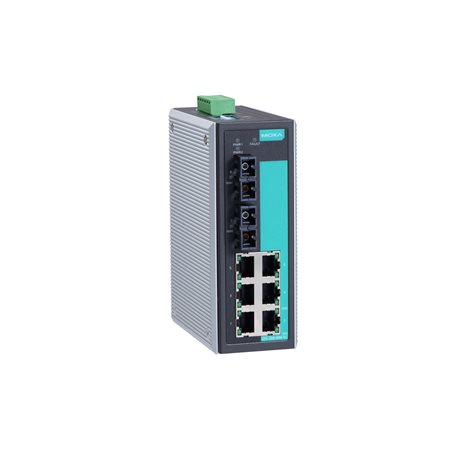

Bộ chuyển mạch Ethernet EDS-308-SS-SC

EDS-308-SS-SC
EDS-308 Series

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, relay output warning, 0 to 60°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 6
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • 100BaseFX Ports (single-mode SC connector)

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control

  • Optical Fiber

    •

  • Optical Fiber

    • Read more

DIP Switch Configuration

  • Ethernet Interface

    • Port break alarm
Switch Properties

  • MAC Table Size

    • 2 kbits

  • Packet Buffer Size

    • 768 K

  • Processing Type

    • Store and Forward
Power Parameters

  • Input Current

    • 0.15 A @ 24 VDC

  • Connection

    • 1 removable 6-contact terminal block(s)

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Voltage

    • Redundant dual inputs, 12/24/48 VDC

  • Reverse Polarity Protection

    • Supported

  • Overload Current Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

  • Weight

    • 790 g (1.75 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Hazardous Locations

    • ATEX, Class I Division 2

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMC

    • EN 55032/24

  • Vibration

    • IEC 60068-2-6

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • UL 508, UL 60950-1, CSA C22.2 No. 60950-1

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32
MTBF

  • Time

    • 255,528 hrs

  • Standards

    • MIL-HDBK-217F
Warranty

  • Warranty Period

    • 5 years
