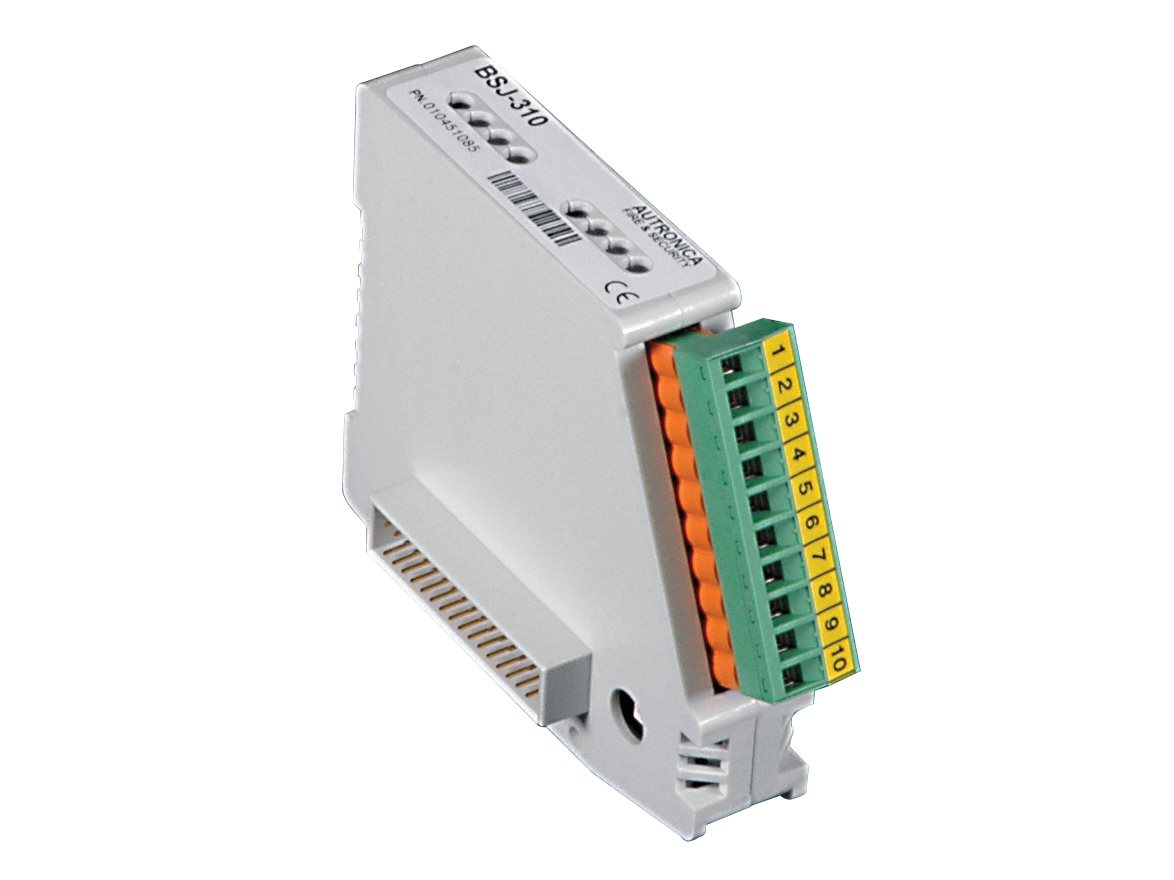

Output module BSJ-310

Datasheet

Repair Service

Output module with 8 open transistor (collector), non-monitored outputs.

The output module provides eight open collector, non-monitored outputs for internal relay or LED operation in a cabinet. The module is easily plugged onto a mounting rail inside the AutroSafe fire alarm control panel BS-420 or the controller BC-420.

The output terminal sinks to 0V when activated. 24V is available on the screw terminals. The module will automatically detect its own address; no Dip-switch or jumper settings are required.

Part number: 116-BSJ-310
