Type 140 PVC-U 100-230V
Type EA 11
Type EA 21 EA 31 EA 42

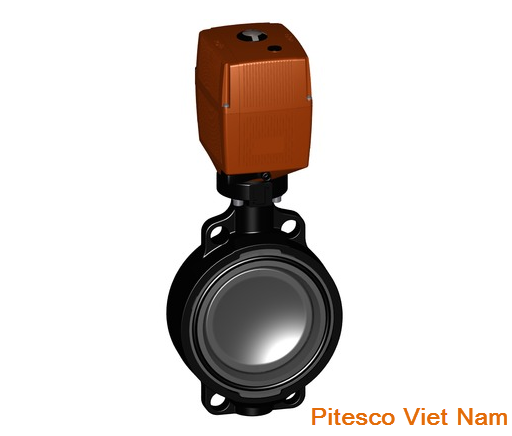

The type 140 electrically actuated butterfly valve from GF Piping Systems is adaptable to a variety of conditions and applications. It is available in PVC-U, PVC-C, ABS, Polypropylene and PVDF.
With the optional positioner, it goes from being a simple on/off valve to a precise flow control device integrated into systems controlled by PLCs and other computerized instrumentation.
- Voltage 100-230V, 50-60Hz
- Control range 90°<)
Control time 15 s/90°<) EA31
Control time 25 s/90°<) EA42
- Actuator with integrated emergency manual override standard
- Up to DN 300: Overall length according to EN558 (DN 50-200: line 25, DN250, 300 line 16), ISO 5752
- Connecting dimension: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
- For DN350-DN400 electric actuator from Valpes is equipped, various options available
