C118

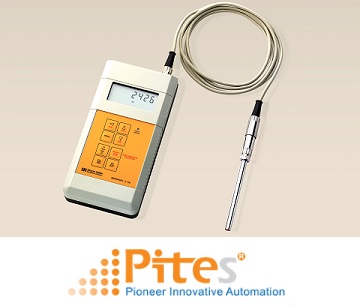

Mobile Monitor C118 for Detection of Speed

• 6 digit LCD Display
• Frequency range 0 Hz...100 kHz
• Signal Input for sensors A1S30 or A1S36 (optoelectronic), A1S37 (Laser), A2S04 (magnet-inductive), A5S0 (Differential-Hall-Effect) as well as wheel pulse transmitters A1L04 or A1L05
• 1 Analog Output 0...4 V
• 1 TTL Pulse Output
• RS232 Data Interface (optional)

A1S30

Sensor A1S30, suitable for most applications

• Power supply by C118
• Sensing distance 1...2 cm
• Signal range 10...15 000 pulses/s
• Operating temperature 0...50 °C
• Best measurements obtainable when using self-adhesive reflecting foil U1A006
• A choice of 2 shaft lengths available (35 or 95 mm)

A1S36

Sensor A1S36 for use in difficult conditions, for example in wet areas

• Power supply by C118
• Sensing distance 1...10 cm
• Signal range 10...15 000 pulses/s
• Operating temperature 0...60 °C
• Best measurements obtainable when using self-adhesive reflecting foil U1A006
• A choice of 2 shaft lengths available (35 or 95 mm)
• A choice of two cable lengths (2 m or 5 m)
