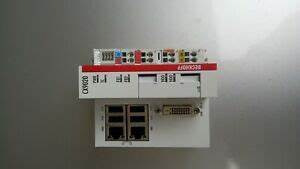

BECKHOFF Vietnam, Embedded-PC  CX9020-0115, Đại lý chính hãng BECKHOFF Vietnam


echnical data CX9020
Processor ARM Cortex™-A8, 1 GHz
Number of cores 1
Flash memory 2 x slot for microSD card, 512 MB included (expandable)
Main memory 1 GB DDR3 RAM (not expandable)
Persistent memory 128 KB NOVRAM integrated
Interfaces 2 x RJ45 10/100 Mbit/s (internal switch), 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
Diagnostics LED 1 x power, 1 x TC status, 2 x flash access, 2 x bus status
Clock internal battery-backed clock for time and date (battery exchangeable)
Operating system Microsoft Windows Embedded Compact 7, English
Control software TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection E-bus or K-bus, automatic recognition
Power supply 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus 2 A
Max. power consumption 5 W
Max. power consumption (with loading UPS) 9 W
Dimensions (W x H x D) 84 mm x 99 mm x 91 mm
Weight approx. 590 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection class IP 20
Approvals/markings CE, UL, ATEX, GL, IECEx
Ex marking II 3 G Ex nA IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
TC3 performance class Economy Plus (30); please see here for an overview of all the TwinCAT 3 performance classes
