Max. Airflow (m3/min) 5.3/6.3
Max. external static pressure (kPa) 1.2/1.7
Collecting effi ciency (%)*1 99.4
Operating environment temperature and humidity 0 to 40℃, 90%RH or less(Indoor specifi cation)
Absorption gas temperature (℃) 0 to 50
Target to be collected*2 Water-immiscible oil mist (Ignition point: Higher than 70℃)
Simultaneously available for water-immiscible oil mist
(However, some types of generated oil mist are not usable.)
Max. inlet density (mg/m3) 50 or less
External dimensions (mm) H593 x W456 x D529
Suction opening Side suction Φ98mm
Weight (kg) 37
Coating color Munsell N7.3 / Munsell 5PB2/2(Fan motor casing)
Rated voltage (V)*3 Three-phase AC200±10% 50/60Hz
Max. Consumption current (A) 1.4/1.7
Max. Power consumption (W) 330/500
Regulatory Compliance Low voltage directive (LVD)/EN60204-1:2006/A1:2009
EMC directive/EN61000-6-2:2005, EN61000-6-4:2007
Installed motor output 0.4kW 2P(All closed external fan type)
Fan material A5052 (Aluminum)
Disk material SUS304 (Stainless)
Drain pipes PF1-inch socket
Noise (dB[A]) 67/71
Environmental response RoHS

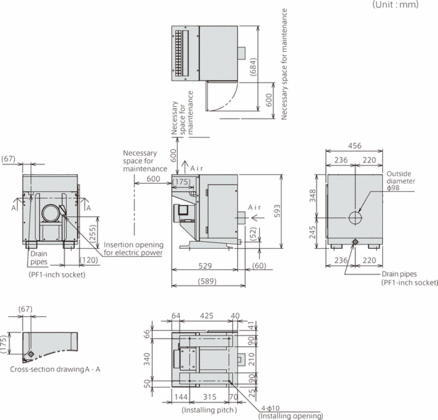

Outer Dimensions

Specifications for

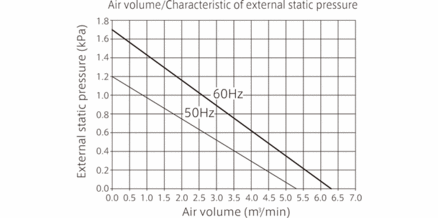

Capability characteristic graph
