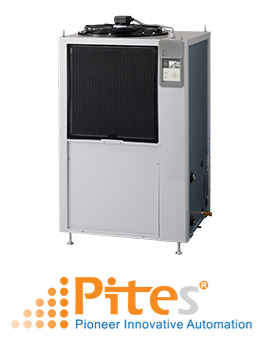

PCU-SL10000

Cooling scheme Air-cooling type
Cooling capacity (W) 10300
Thermal capacity (W) 2500
Circulated water Pure water (over 1μs/cm), distilled water, pure water, ethylene glycol (less than 30% density)
Temperature control accuracy (°C) ±0.1
Circulated water temperature range (fresh water) (°C) 5 to 45
Circulated water temperature range (antifreeze) (°C) -5 to 45
Circulated water flow-rate range (L/min) 20 to 70
Circulated water pressure range (Mpa) 0.7 or less
Ambient temperature (°C) -5 to 45
Type R-410A
Filling amount (g) 1350
Exterior dimensions (w/o casters) (mm) H1468 x W850 x D750
Paint color DIC G-260 (Munsell value: N7.5 equivalent)
Weight (kg) 135
Power voltage (V) 3-phase AC200 to 230VAC
Power consumption (kW) 4.6
Current consumption (A) 14.5
Breaker capacity (A) 30
Power source capacity (kVA) 7.6
Constituent equipment/Compressor Shutting tightly Roundabout system
Constituent equipment/Condenser Parallel flow condenser type, forced air cooling system
Constituent equipment/Cooler Plate-type heat exchanger
Constituent equipment/Water pump Multistep spiral dipping mandrel
Constituent equipment/Lift (m) 51
Constituent equipment/Tank capacity (L) 35
Constituent equipment/Coolant R-410A
Safety circuitry/Compressor Motor protector
Safety circuitry/Cooling cycle Pressure switch
Safety circuitry/Circulated water circuit Water pressure sensor, low-water float switch
Alarm output No voltage open-contact (AC250V/2A)
Water temperature upper-limit alarm output No voltage open-contact (AC250V/2A)
Water temperature lower-limit alarm output No voltage open-contact (AC250V/2A)
Operation stop output No voltage open-contact (AC250V/2A)
Pump output No voltage open-contact (AC250V/2A)
Operation stop input No voltage input
Error reset input No voltage input
Emergency stop input No voltage input
Ethernet (Communication standard) Ethernet 10BASE-T/100BASE-TX
Ethernet (Communication protocol) Socket (TCP/IP), MC protocol (UDP/IP)
Ethernet (IP address) IPv4
LCD (Settings menu) Operation mode/Circulated water temperature alarm/Timer/Settings/Custom settings/Input-output settings/Communication settings/Error history
LCD (Circulated water temperature movement) Circulated water temperature rising/decreasing/stable trend
LCD (Graphical display) Internal temperature graph, circulated water pressure graph
LCD (Input/output monitor) Input 1 (3-point)/Output 1 (3-point)/Output 2 (2-point)
LCD (Operation monitor) Compressor high-pressure/Compressor low-pressure/Circulated water pressure/Circulated water temperature/Compressor outlet temperature/Compressor inlet temperature/Circulated water flow-rate/Circulated water temperature/Compressor operation time/Fan operation time/Pump operation time
Water resistance IPx4 equivalent
Vibration resistance MIL-STD-810F equivalent
Safety standard CE (low-voltage command, EMC command)、UL(ETL)
Operation noise level (dB) 69

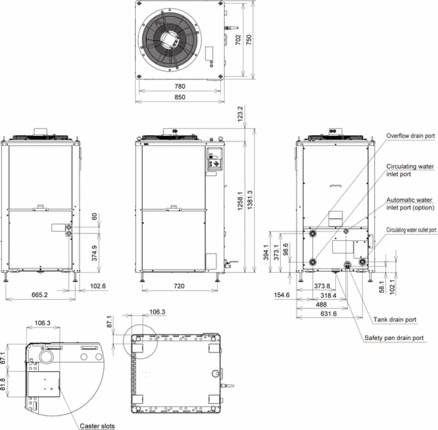

Dimensions

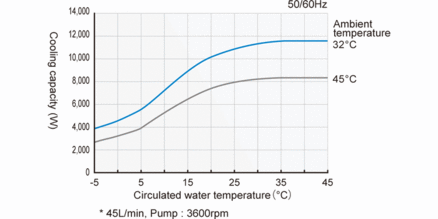

Cooling capacity
