* Specification

Model iMDC
CPU 32 bit (ARM Coretex A8) Microprocessor
OS Embedded Linux
Memory 512MByte Flash / 256MByte DDR2 SDRAM
ID User Up to 200,000 Users
Event Buffer Up to 200,000 Events
Power / Current DC 12V / Max. 500mA
Temper Switch Input Port 1 EA

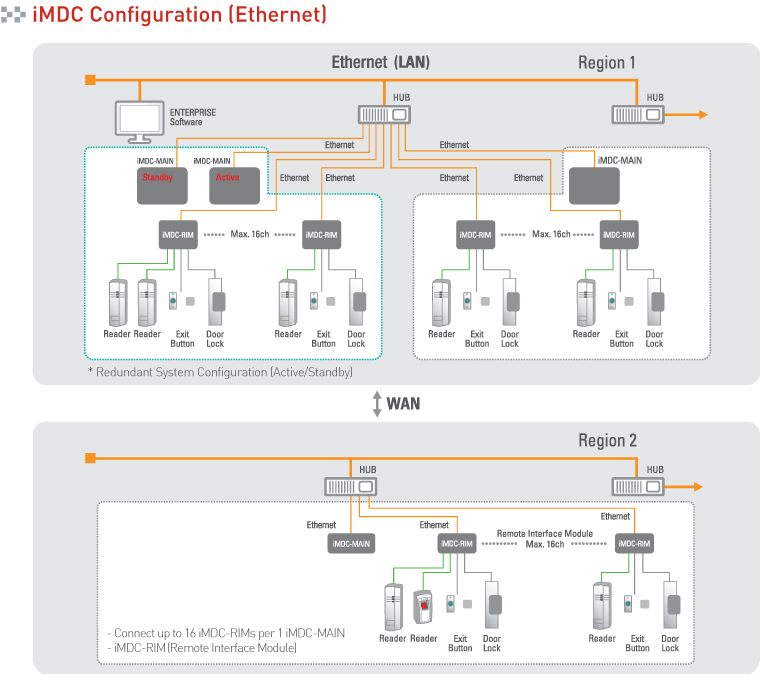

Communication Ethernet (RIM board and host communication) , RS485 (RIM board communication)
Communication Speed 10/100Mbps
RIM Board Interface

 16 iMDC-RIM via Ethernet or RS485 / 2 Readers, 8 Inputs, 8 Outputs per Device
 (Connect Up to 32 Readers, 128 Inputs, 128 Outputs to the Board)

22 LED Indicators
LED Indicator
Buzzer Piezo Buzzer
Operating Temperature 0°~ +65°C
Operating Humidity 10% to 90% Relative Humidity, Non-Condensing
Dimension
(W x H x T)
137mm x 137mm x 18mm
Weight 135g
Certification FCC, CE, KC, RoHS, UL


Model iMDC-RIM
PRODUCT VERSION v3.00 or later below v3.00
CPU 32 Bit Microprocessor 8 Bit Microprocessor
Power / Current DC 12V / Max.350mA DC 12V / Max.350mA
Reader Port 2 EA
- Default: 26/34 Bit Wiegand, 4/8 Bit Burst for PIN
- Programmable Wiegand Format to suit Customer Request (Up to 53Bit)
LED / Buzzer Control 2 EA N/A
Input Port 8 Supervised 4-State Input (NO/NC Input Type Selectable)
Output Port 8 EA : 2 FORM-C Relay Output (COM, NO, NC)
/ DC 12V~18V, Rating Max 2A
Communication Ethernet(Default)
(Ethernet, Serial Selectable)
Ethernet
Communication Speed Ethernet 10/100Mbps (iMDC and host communication)
Seiral 38,400 bps (iMDC communication) N/A
LED Indicator 33 LED Indicators 25 LED Indicators
Operating Temperature 0°~ +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Dimension (W x H x T) 157mm x 185mm x 18mm 137mm x 137mm x 18mm
Weight Ethernet 222.5g 168g
Seiral 210g -
Certification FCC, CE, KC, RoHS, UL


* Time Schedule

Time Code 255
Time Interval 24

Holiday Code 255
Holiday 256
